Soft Seated Wedge UL FM Gate Valve Red For Fire Fighting Service

Brand Name : AFC

Model Number : FRHF, FNCF, FRHG, FNCG

Certification : UL 262 and FM 1120

Place of Origin : China

MOQ : 1

Price : USD RMB

Payment Terms : L/C, T/T

Supply Ability : Based on order

Delivery Time : 45-60 days

Packaging Details : Plywood cases

Material : Dictile iron GJS500-7

Color : Red

UL Standard : UL 262

FM Standard : FM 1120

Handwheel : Ductile Iron

Flange : PN16 or AISI B16.1 or Table E

Contact Now

Soft Seated Wedge FM/UL Approved Gate Valve For Fire Fighting Service

300 PSI Soft Seated Wedge FM/UL Approved Gate Valve For Fire Fighting Service

Features:

1. Stem Seal and Replacement : The valve has a stem seal designed to prevent water within the body from leaking to the enviornment at the point where the stem passes through the bonnet.It is designed to be replaced by one person with the valve in the wide open position and under the rated working pressure

2. Wedge: EPDM rubber vulcanized on DI wedge by qualified technology, more resilient & strong adhesive to ductile casting.

3. Stem: Forged platform to hold wedge provides stronger operation and less moving parts. No pin connection.

Application

1. OS&Y gate valve are used indoors or in outdoors pits and NRS valves are used with wall indicator posts or underground with tee-handle wrenches or indicator posts attached or as roadway box valves

2. NRS gate valves are available either with or without a base flange. Valves with base flange are used to support upright indicator posts. Valves without base flange are used with wall indicator or tee-wrenches in buried serivces

Technical Data:

Size	DN50-DN300
Working Temperature	- 10C- 80C
Flange	AISI B16.1 and PN16
Grooved Ends	AWWA C606
Flow Media	Water

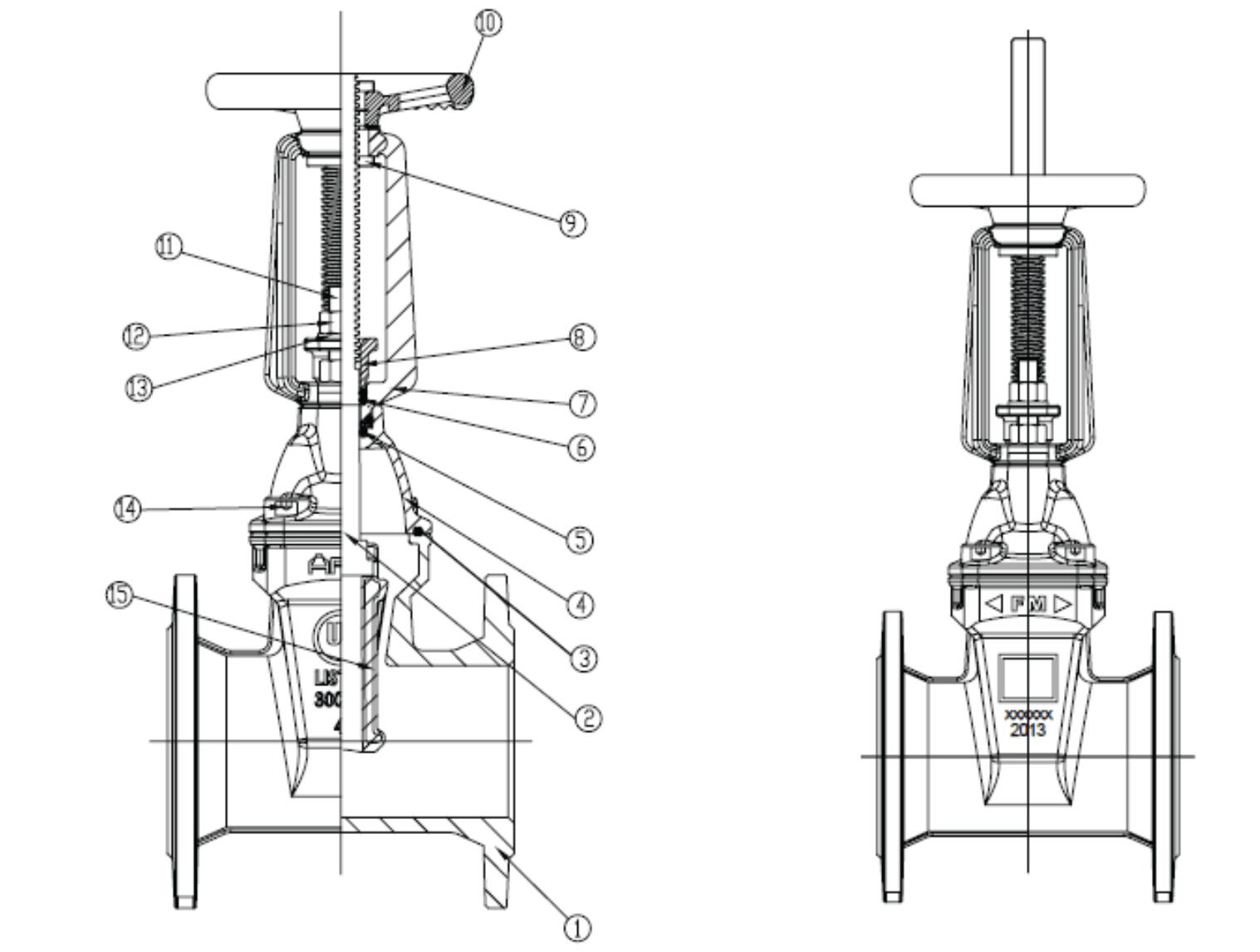

OS&Y

Material:

Dimensions:

Soft Seated Wedge UL FM Gate Valve Red For Fire Fighting Service

NRS

Material:

Soft Seated Wedge UL FM Gate Valve Red For Fire Fighting Service

Dimension

Soft Seated Wedge UL FM Gate Valve Red For Fire Fighting Service
